For your home and school projects, electronic repairs and hobbies including model railroads. When your electronics project or repair requires red lamps, let RadioShack be your source.

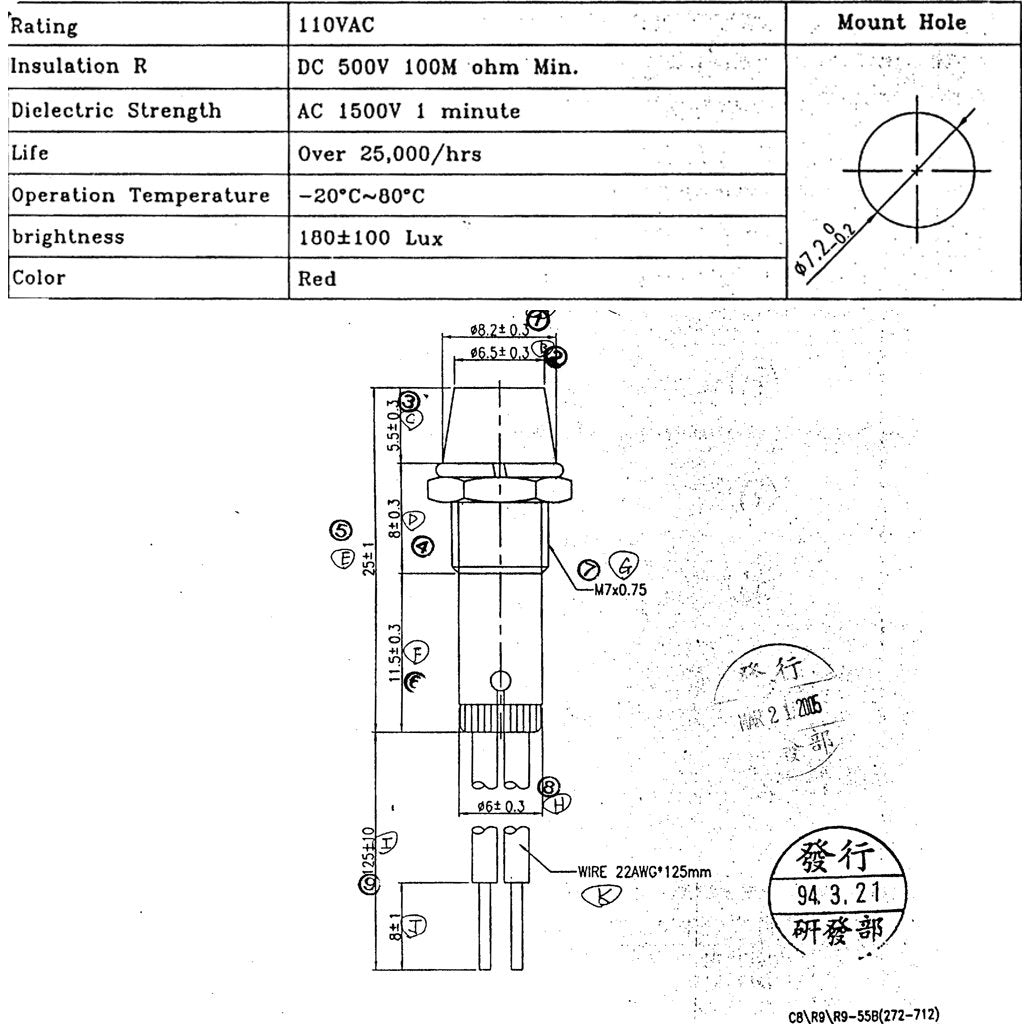

| Part Number | 2720712 |
| Package Dimensions | 4 x 2.8 x 0.7 inches |
| Color | Red |
| Shape | Round, Flat Top |
| Power Rating | 110VAC |
| Insulation R | DC 500V 100M Ω/Min |
| Dielectric Strength | AC 1500V 1 Minute |
| Power Use | 0.06 Watts |
| Resistance | 33KΩ |
| Operating Temp | -20C~80C |
| Brightness | 180±100 lux |
| Wire Gauge | 22AWG |
| Life | Over 25,000 Hours |
| Mounting Diameter | 9/32" |

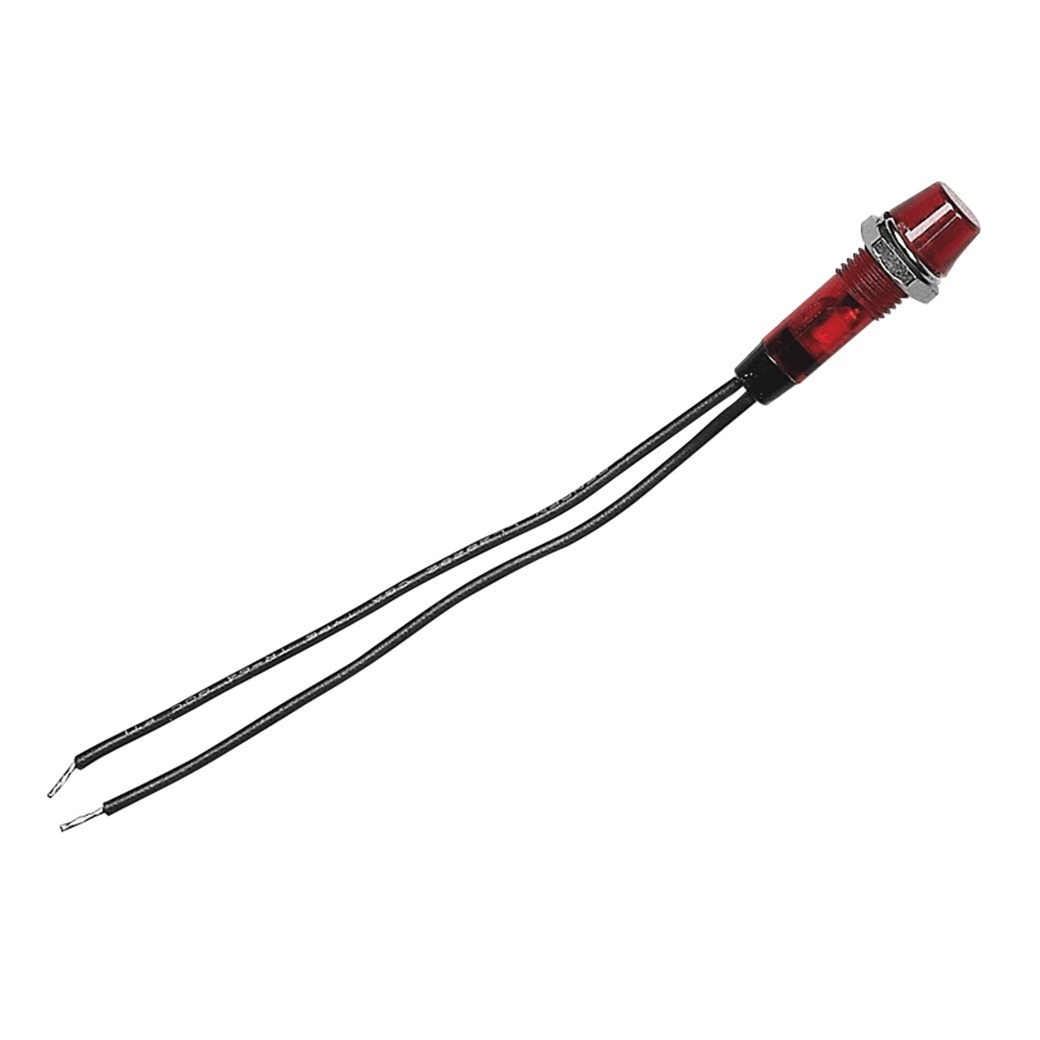

| Type of Bulb | Neon Lamp |
Parts Warranty: 90 Days
