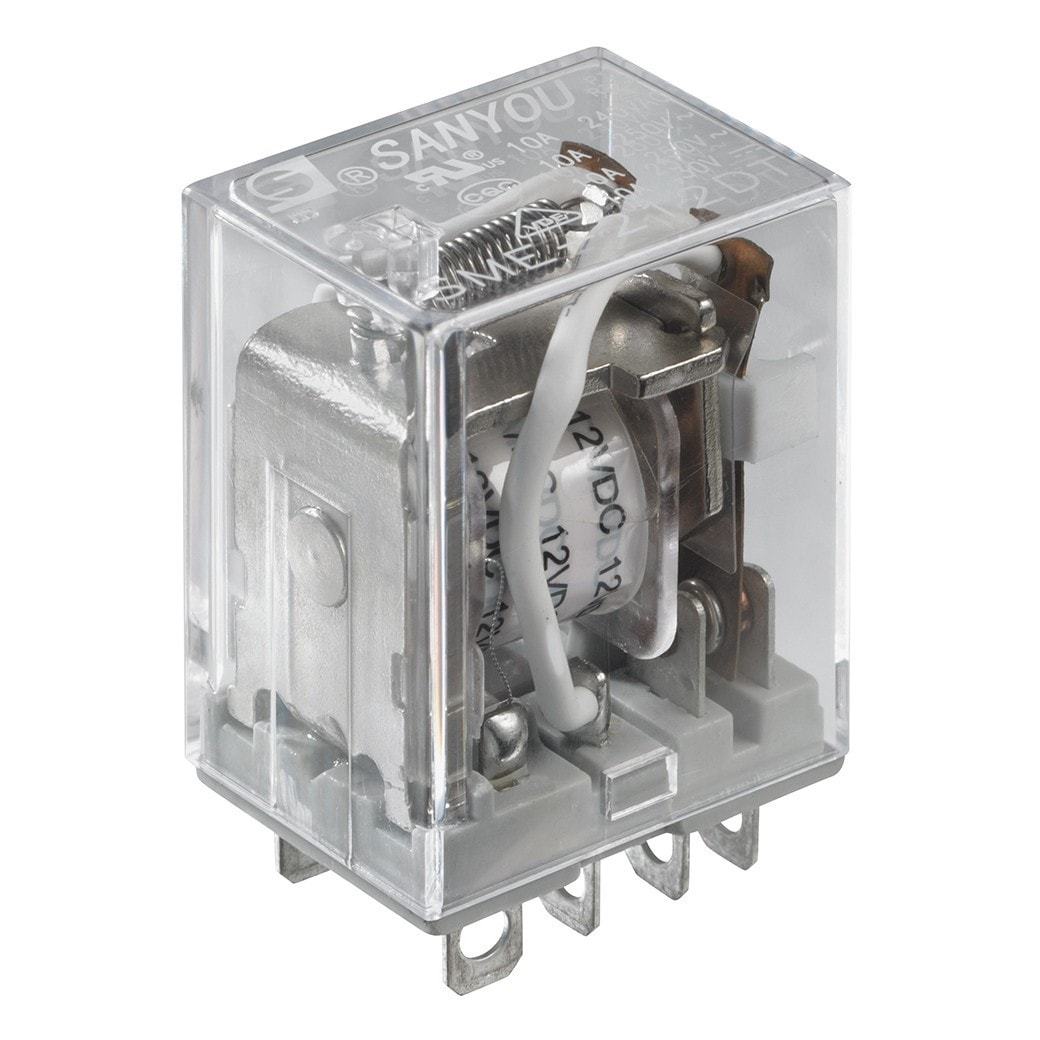

Make the repair or add switching to your DIY project with this 12VDC 10A DPDT relay.
Specifications
| Part Number | 2750043 |
| Compatible Part No. | Sanyou SME-212DT1 NTE R14-11D10-12 IDEC RH2B-UDC12V |
| Nominal Switching Capacity | 10A 250VAC |
| Coil Rated Voltage | 12VDC |
| Coil Resistance | 160 Ohm (Typical) |
| Contact Ratings | 10A 240VAC 10A 24VDC |
| Number of Poles | 2-2 Poles |
| Mounting Type | T-Socket |
| Contact Form | Nil-Form C |
| UPC | 040293971700 |
Parts Warranty: 90 Days
