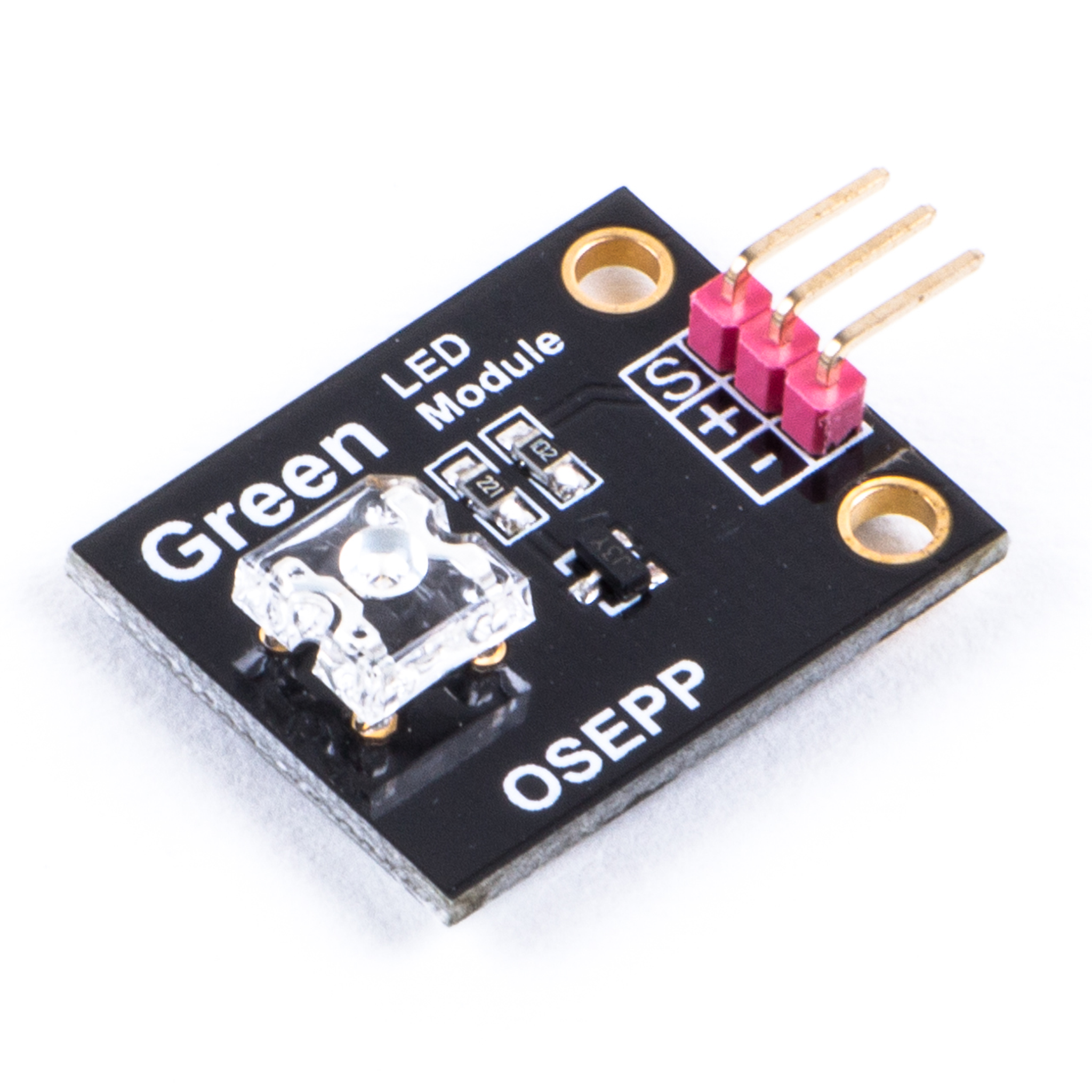

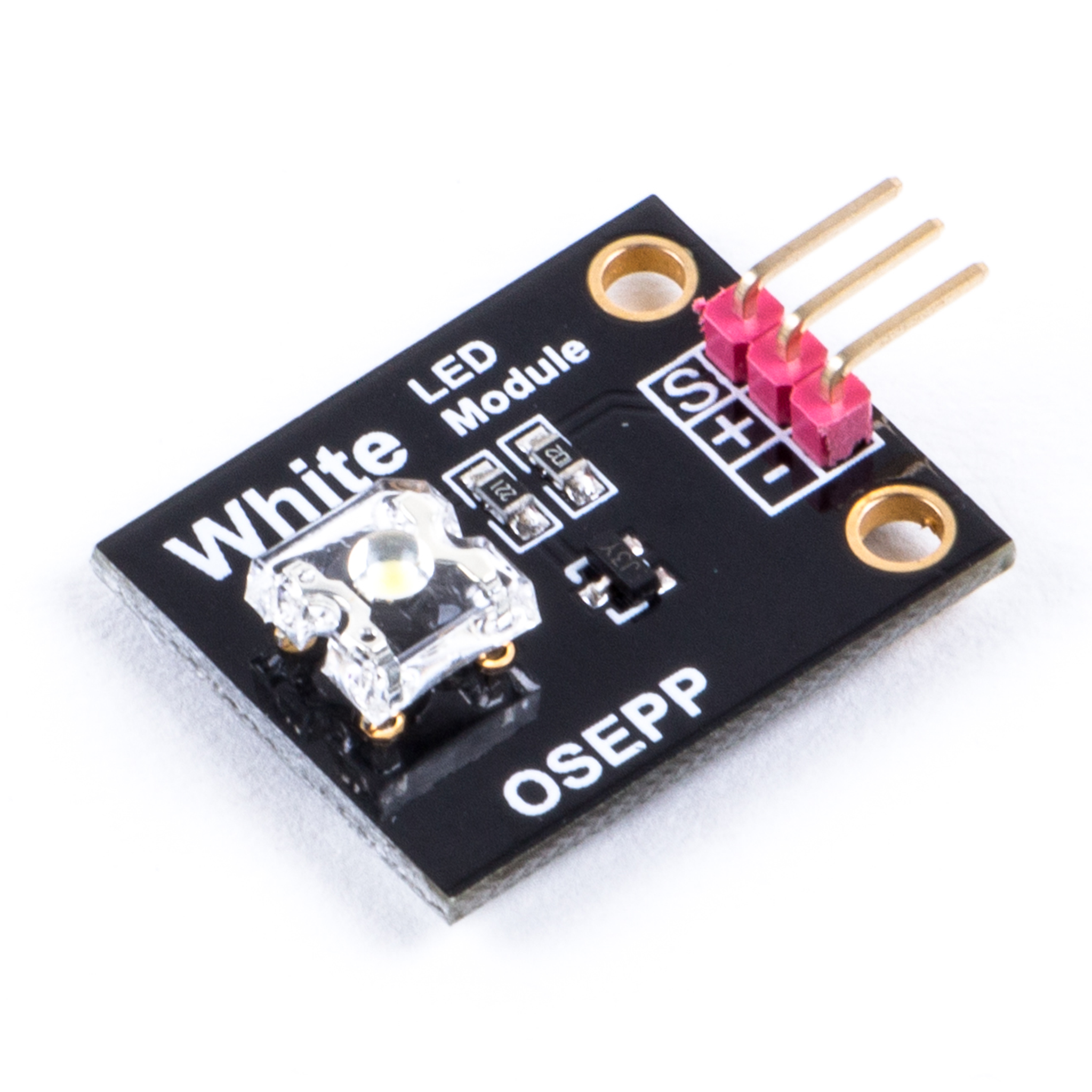

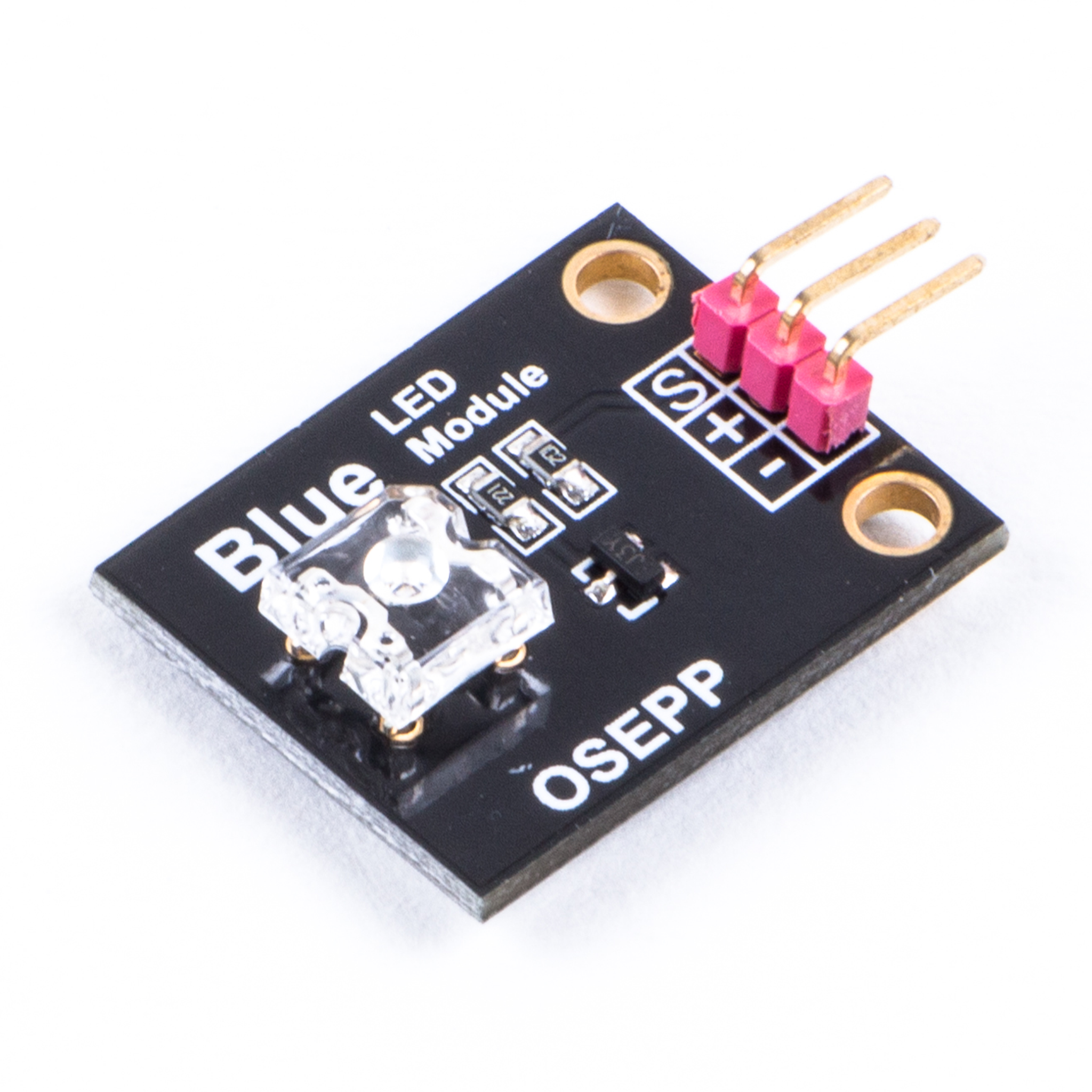

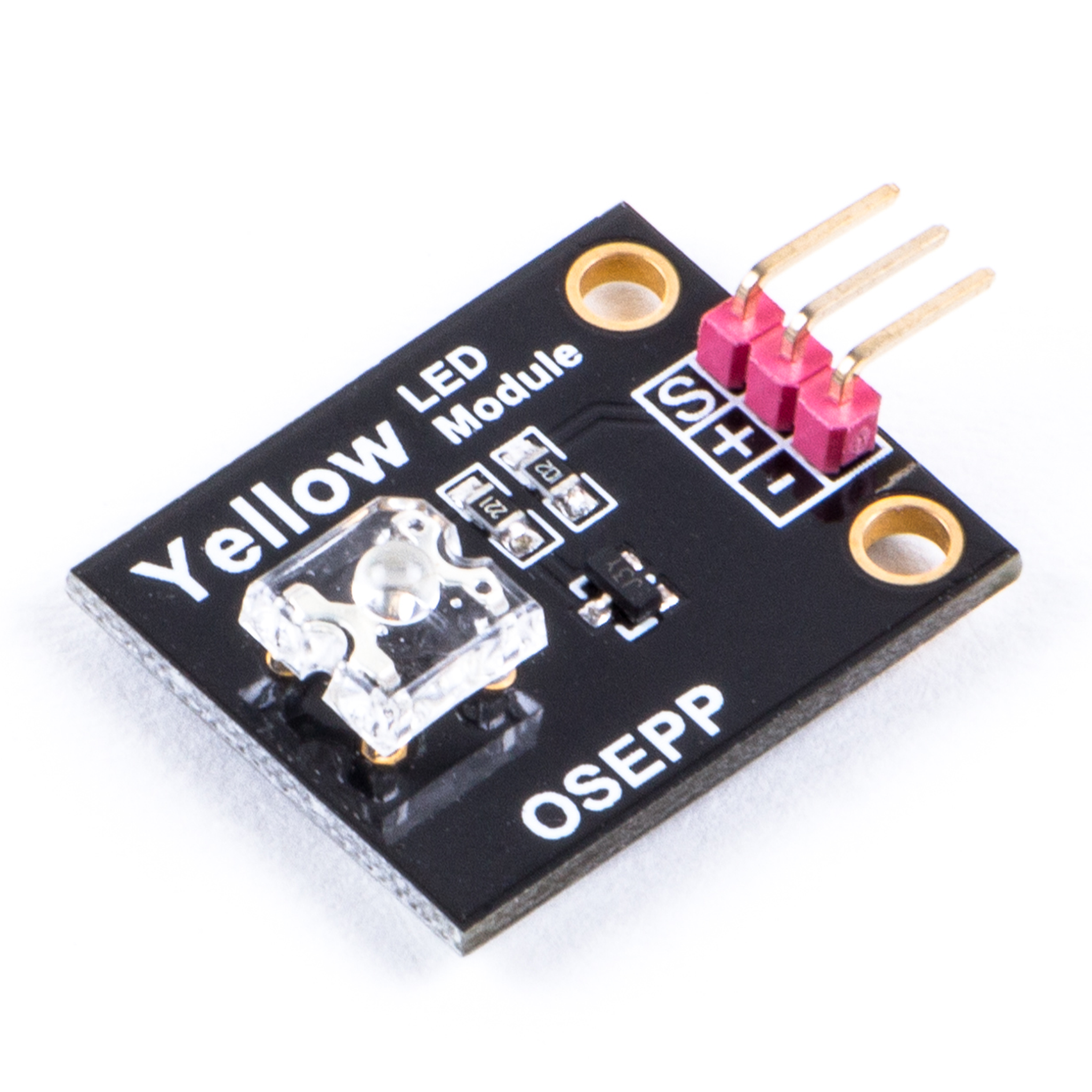

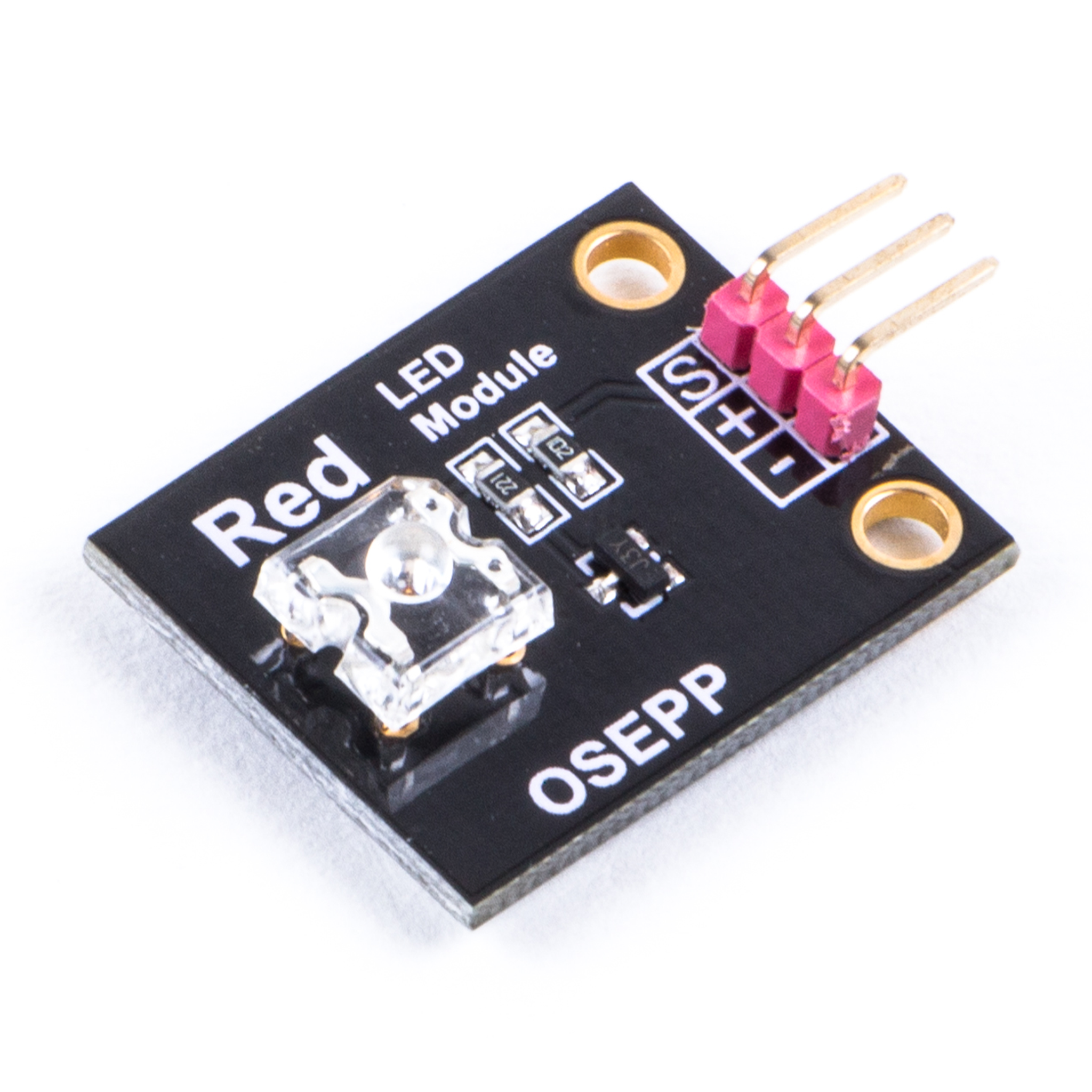

This LED module from OSEPP plugs directly in to your Arduino's I/O lines. The LED can be controlled through an analog PWM signal or a digital high/low output.
- 100% Arduino compatible.
- Digital and PWM (pulse width modulation) control.
- Operates on 5V.
| Specifications | |
| Catalog No. | 2760453 - Blue 2760454 - Green 2760456 - Red 2760457 - White 2760458 - Yellow |
| Mfg. Part No. |
LEDBL-01 - Blue LEDGN-01 - Green LEDRD-01 - Red LEDWH-01 - White LEDYL-01 - Yellow |
| Operating Voltage | 5V |
| Working Current | 25mA |
| UPC |
667510001240 - Blue 667510001257 - Green 667510001271 - Red 667510001288 - White 667510001295 - Yellow |

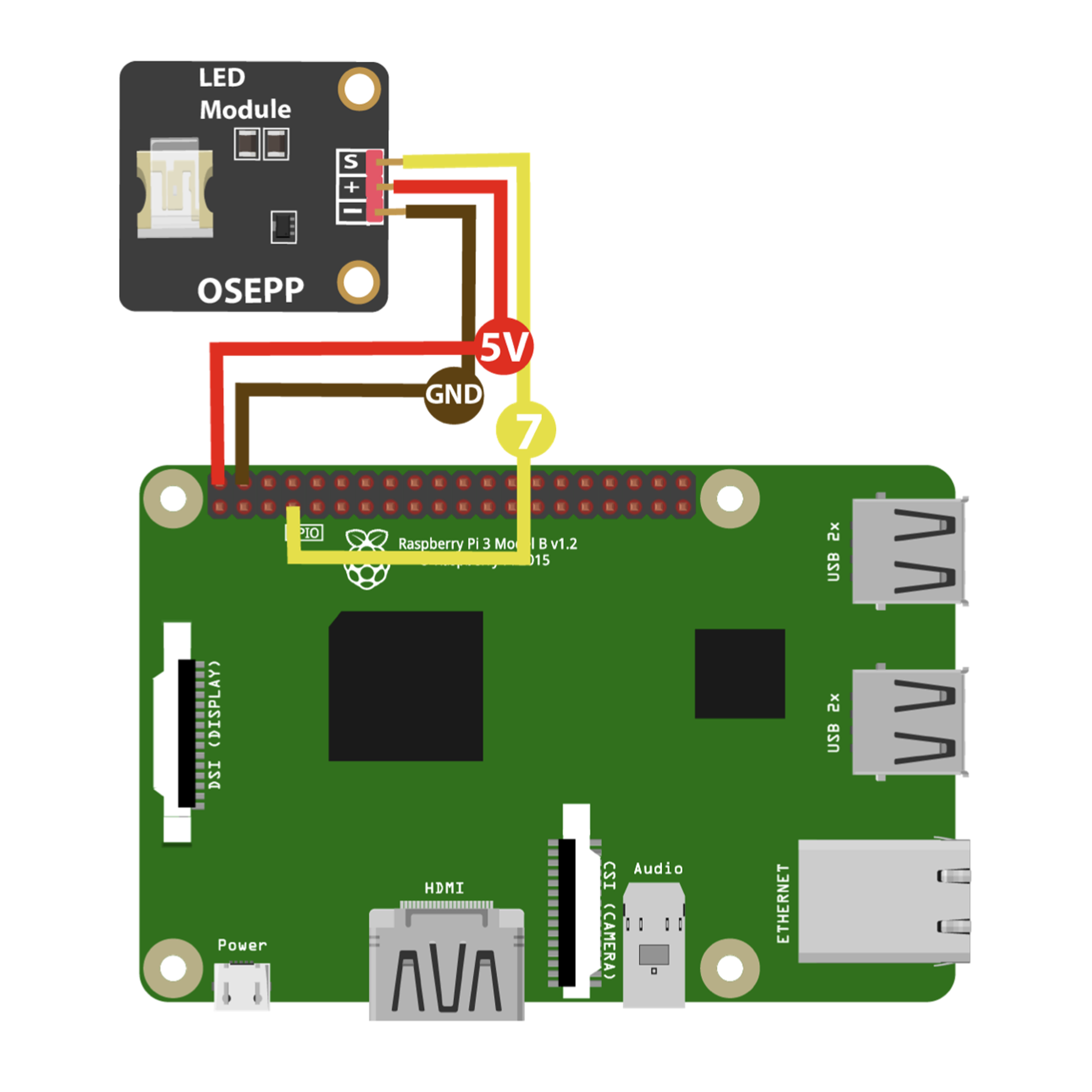

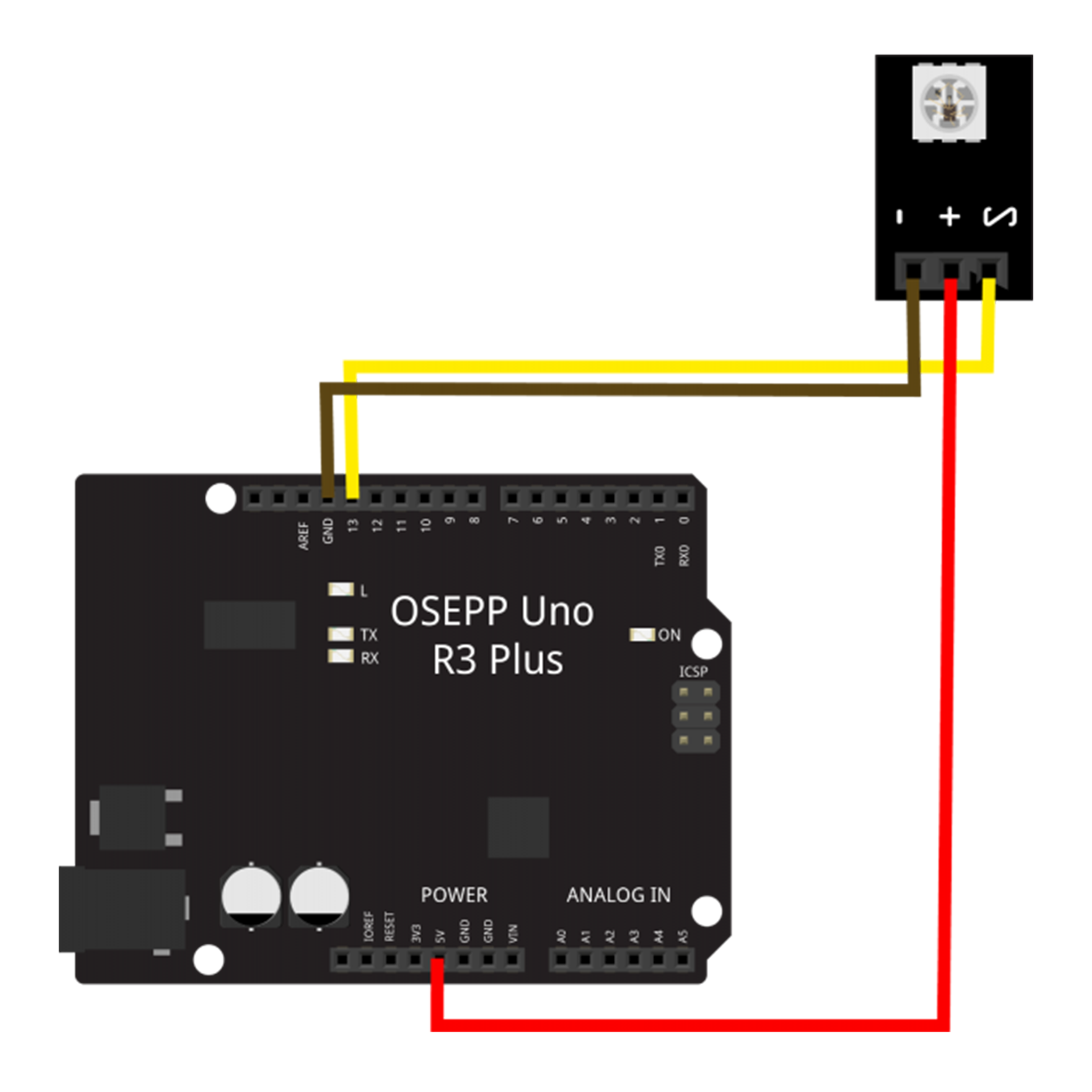

LED Modules Tutorial for Arduino and Raspberry Pi (PDF)
Technical Schematic (PDF)
Source Code (ZIP)
