- These amplifiers are designed to specifically to operate from a solitary supply over a wide range of voltages.
- Also can function when the difference between the two supplies is 3V to 30V and VCC is at least 1.5V more positive than the input common mode voltage.

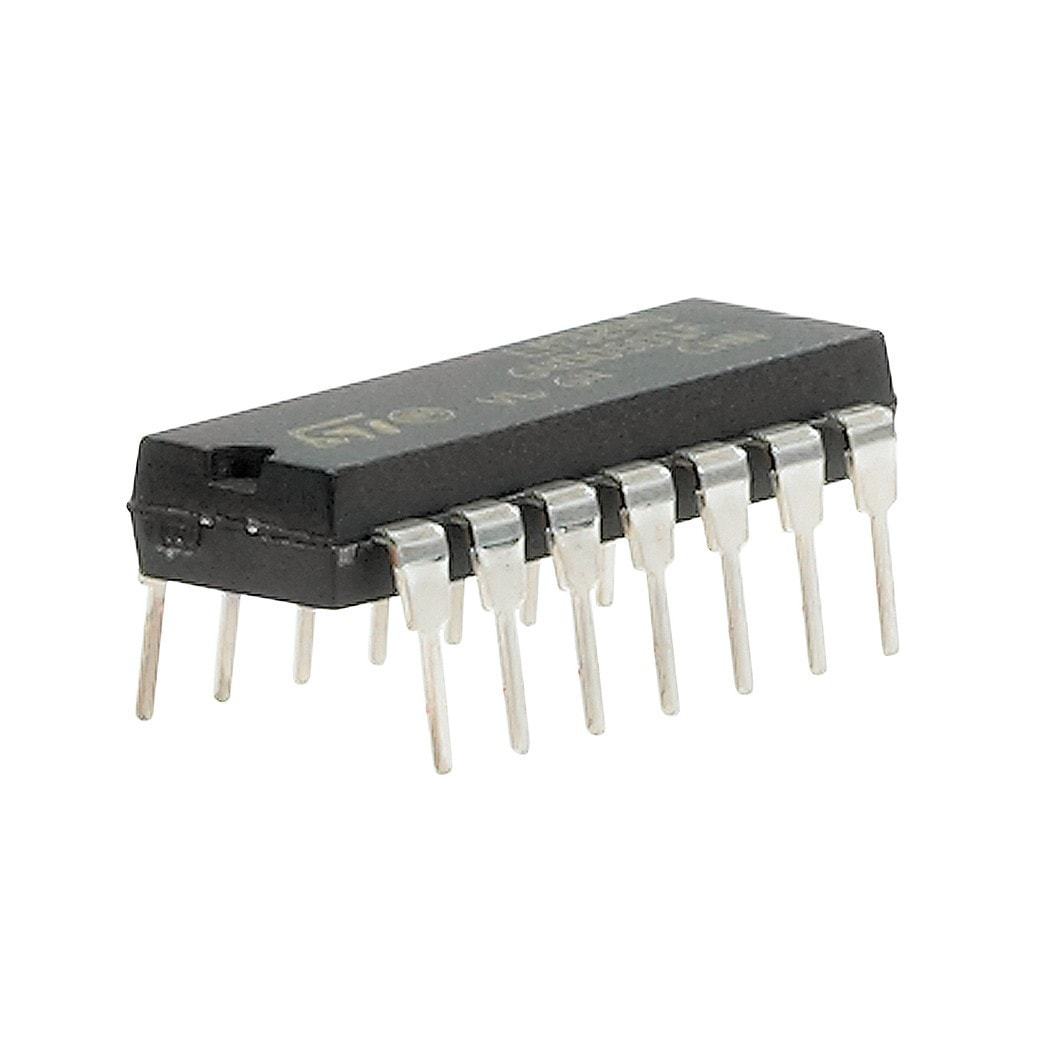

- Consists of 4 internally compensated high-gain op amps.
| Part Number | 2761711 |
| UPC | 040293128302 |
| Absolute Maximum Ratings | |
| Supply Voltage | V+: +32VDC or +16VDC |
| Differential Input Voltage | 32VDC |
| Input Voltage | -0.3VDC to +32VDC |
| Power Dissipation | 570mW |
| Operating Temperature | 34° to 158°F (0° to 70°C) |
| Large Signal Voltage Gain | 100dB |
| CMRR | 80dB |
| Electrical Characteristics | |
| Output Current Source | Typical 40mA |
| Output Current Sink | Typical 20mA |
| Input Offset Voltage | Typical 2.0mVDC |
Parts Warranty: 90 Days
