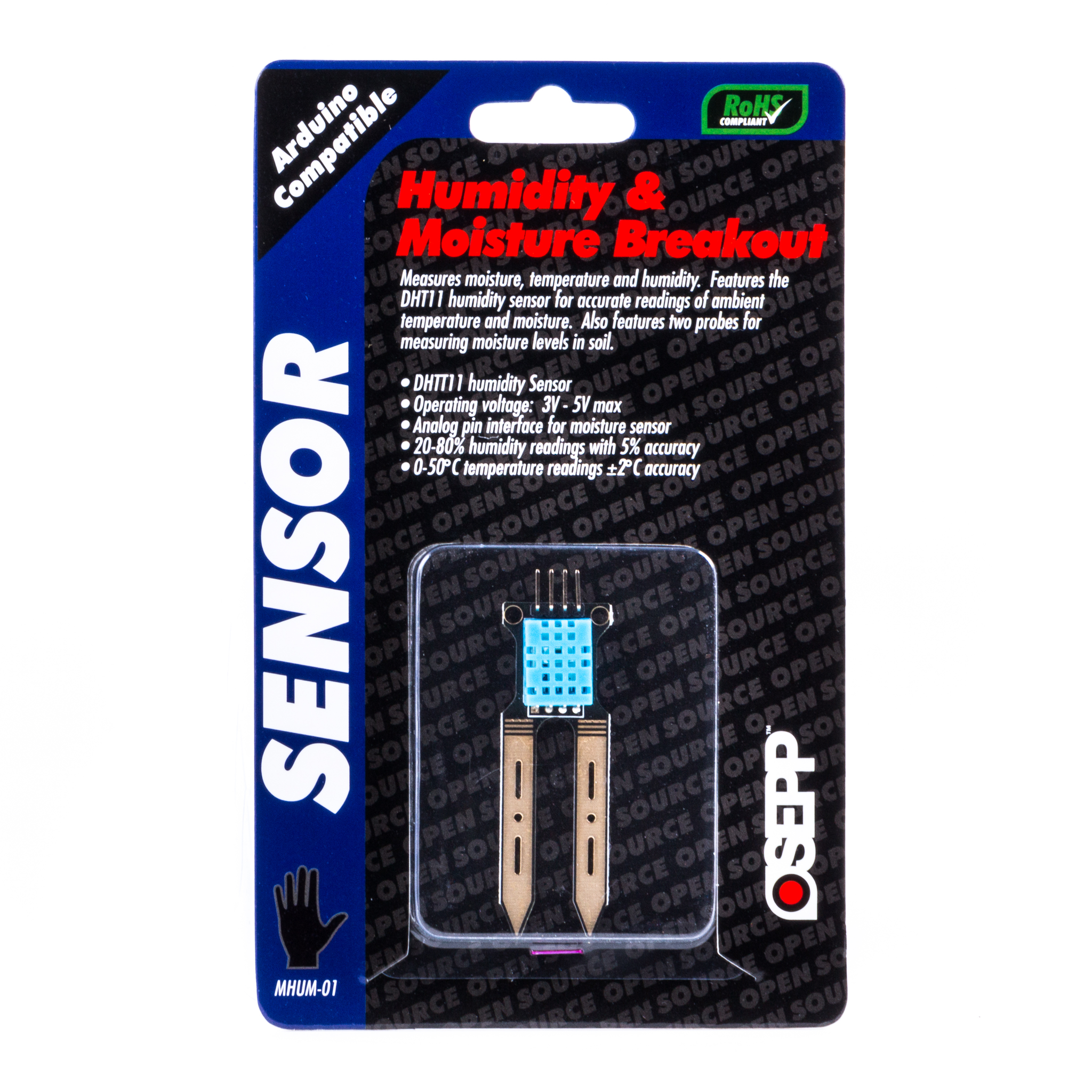

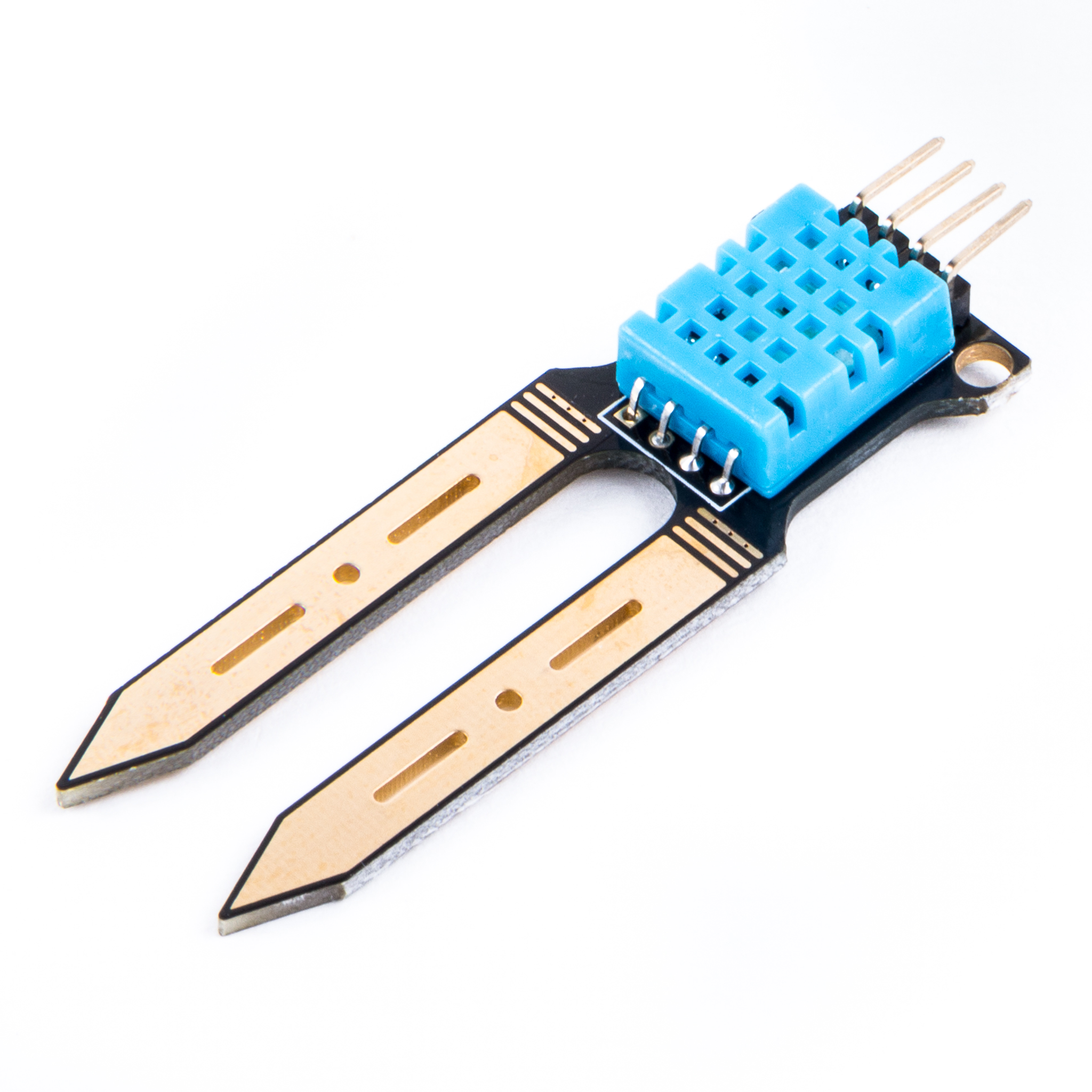

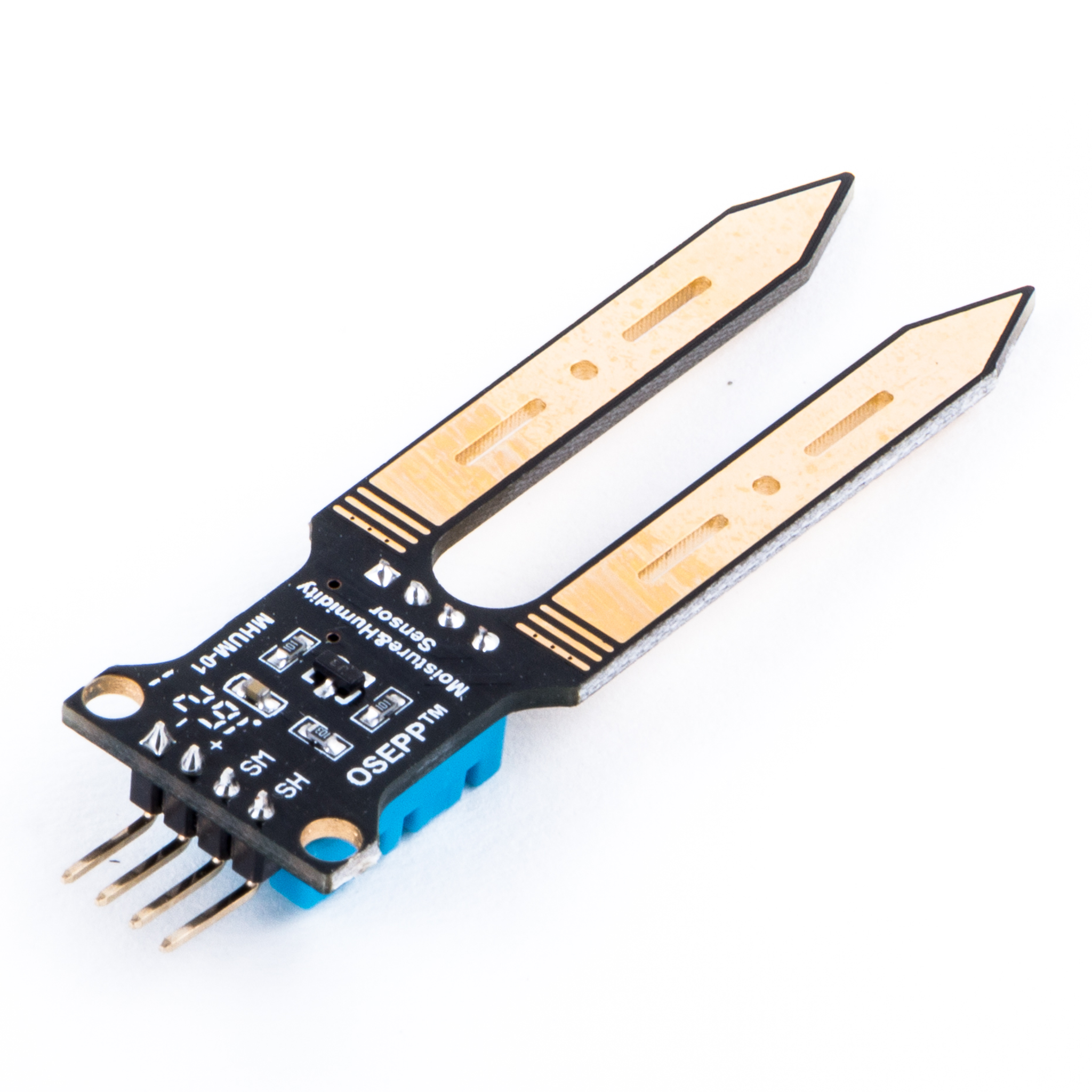

OSEPP's moisture & humidity breakout measures soil moisture, temperature and humidity. The breakout features the DHT11 humidity sensor for accurate readings of ambient temperature and moisture. The moisture/humidity breakout also features two probes used for measuring the moisture levels in soil. Add smarts to your next botanical Arduino project!
- 100% Arduino compatible.
- Analog pin interface for moisture sensor.
- Built-in DHT11 humidity sensor.
| Specifications | |
| Catalog No. | 2760462 |
| Mfg. Part No. | MHUM-01 |
| Operating Voltage | 3 to 5V Max. |
| Humidity Detection Range | 20 to 80% ±5% |
| Temperature Detection Range | 0 to 50°C ±2°C |
| UPC | 667510001455 |
Technical Schematic (PDF)
Source Code (ZIP)
⚠️ WARNING: CHOKING HAZARD: Small parts. Not for children under 3 yrs.
