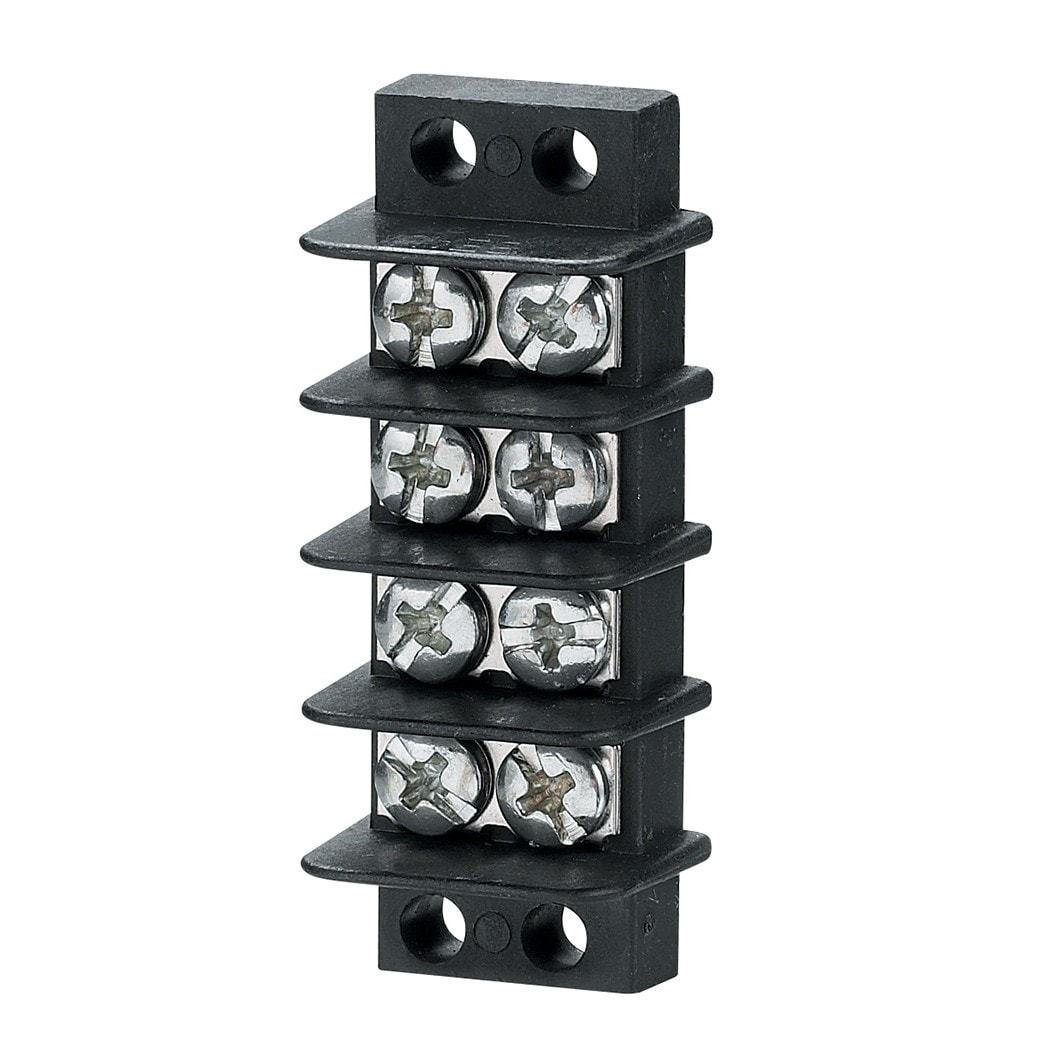

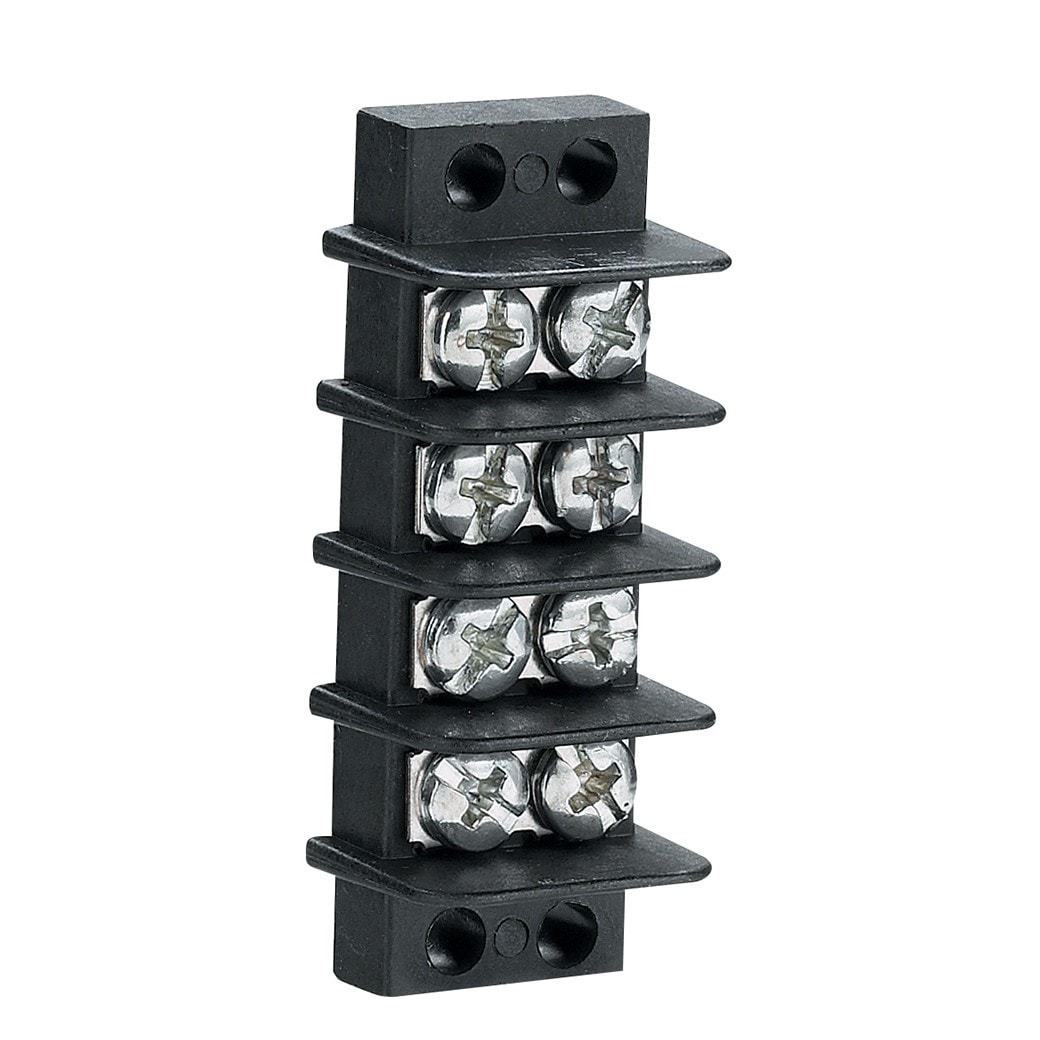

This 4-position, dual-row barrier strip lets you access wiring without disturbing the circuit. Barriers help prevent short circuits. For hobby projects, security alarm hookups, and more.
- Made of heavy-duty thermoplastic.
- Rated up to 20A, 600V.
- Works best with wire sizes from 22 to 12 AWG.
| Specifications | |
| Block Material | UL 94V-0 Thermoplastic |
| Current Rating | 20A |
| Wire Size | 22-12 AWG |
| Length | 2.14” (55mm) |
| Pin Spacing | 0.375“ (9.5mm) |
| Screw Size | #6-32 |
| Operating Temp. Range | -40 to 221°F (-40 to 105°C) |
