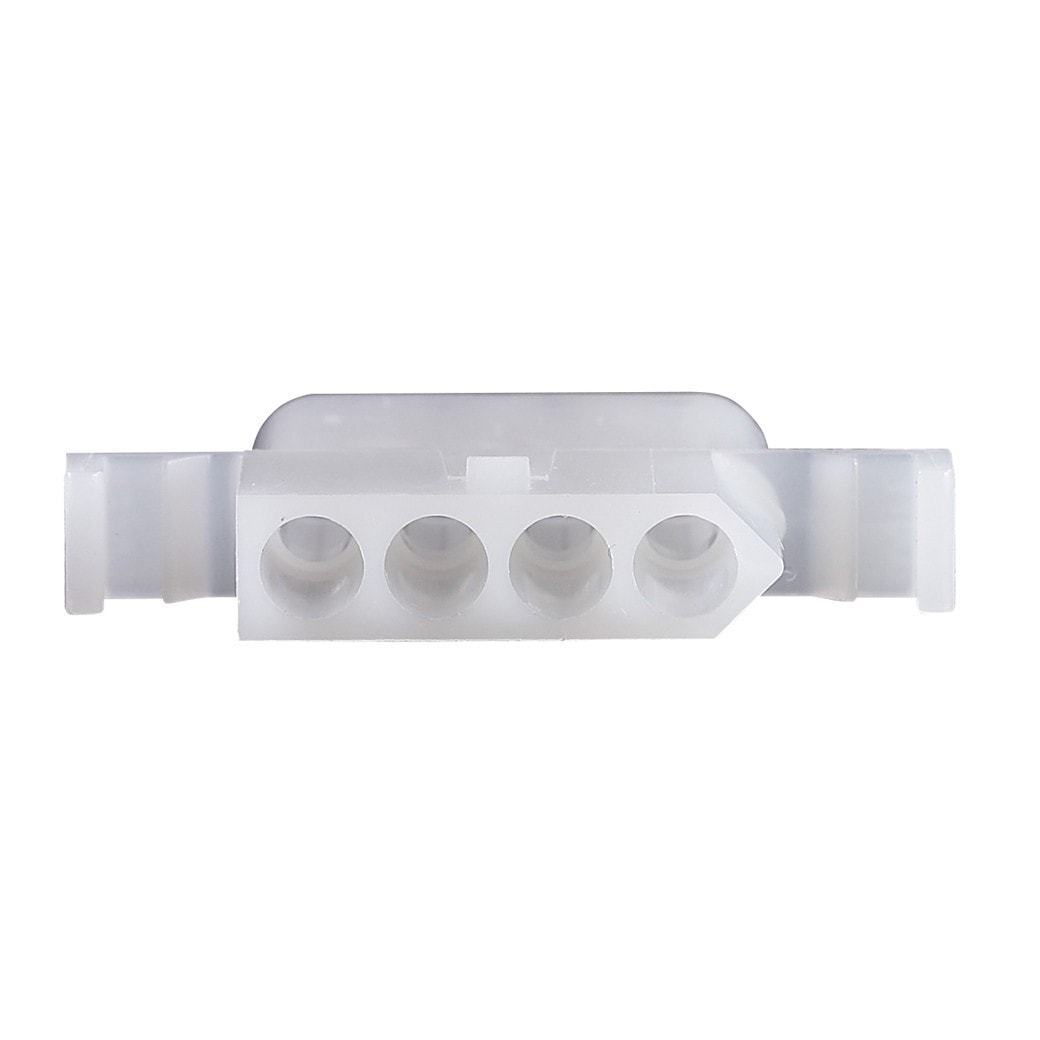

Prevent accidental reversing in major appliances with this quality polarized connector. Polarized to assure correct hookup, this adaptable connector lets you create your own unique plug. Just swap the male and female pins between the connector halves to make customized plugs that fit any cable.
- Constructed of heavy-duty molded nylon.
- Mates with Cat. № 2740224 (male).
| Specifications | |
| Voltage Rating | 250V~ Max. per Circuit |
| Current Rating | 12A Max. per Circuit |
| Compatible Wire Gauge | 18-22 AWG |
| Terminal Diameter | 2.36mm (0.093”) |
| Housing Material | UL 94V-2 (Rated PA66) |
| Terminal Material | Tin-Plated Brass |
| Operating Temperature | -40° to 105°C (-40° to 221°F) |
