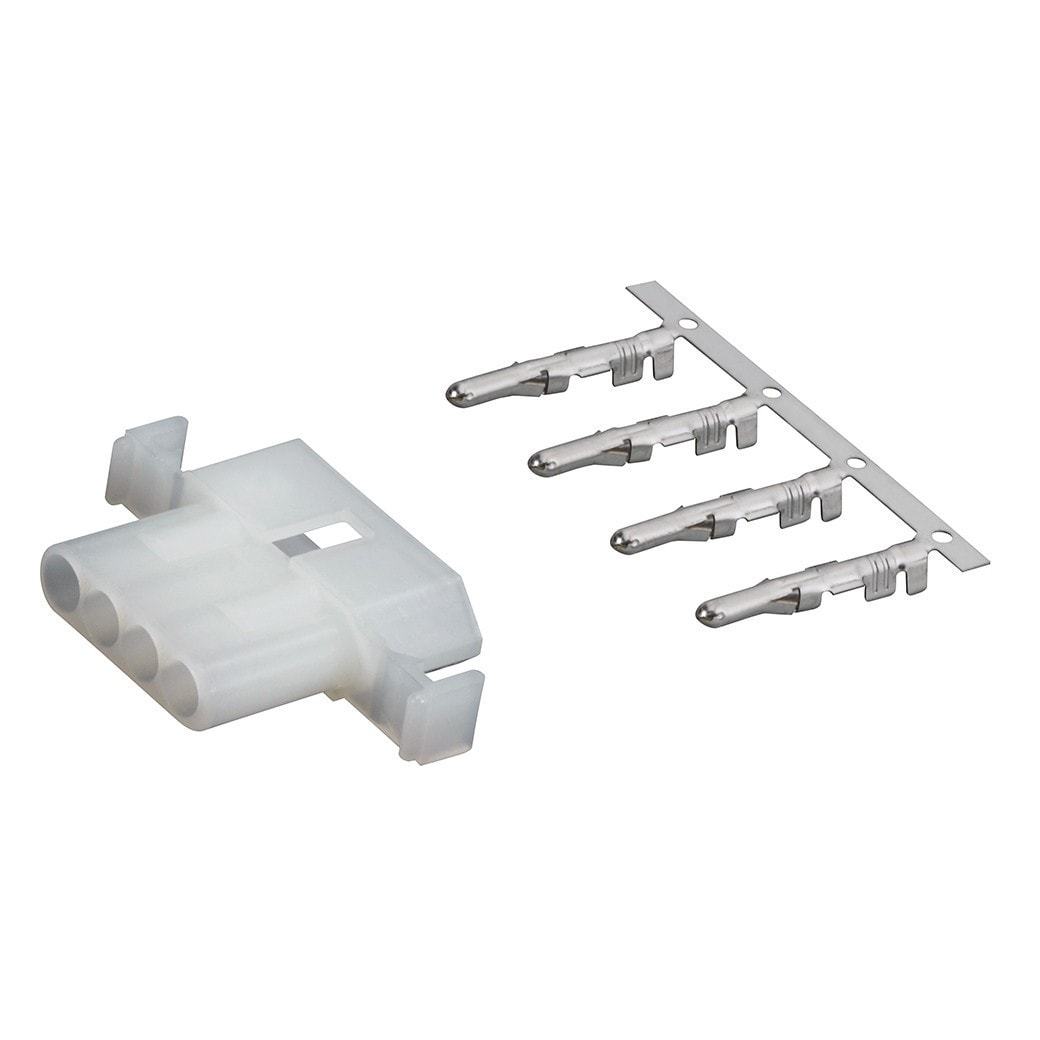

This quality 4-position male polarized interlocking connector allows you to create your own unique plug while preventing accidental reversing. Mates with Cat. № 2740234.
| Specifications | |
| Catalog No. | 2740224 |
| Voltage Rating | 250V~ Max. per Circuit |
| Current Rating | 9A Max. per Circuit |
| Compatible Wire Gauge | 18-22 AWG |
| Terminal Diameter | 2.36mm (0.093") |
| Housing Material | UL 94V-2 (Rated PA66) |
| Terminal Material | Tin-Plated Brass |
| Operating Temperature | -40°C to 105°C (-40° to 221°F) |
| UPC | 040293131272 |
