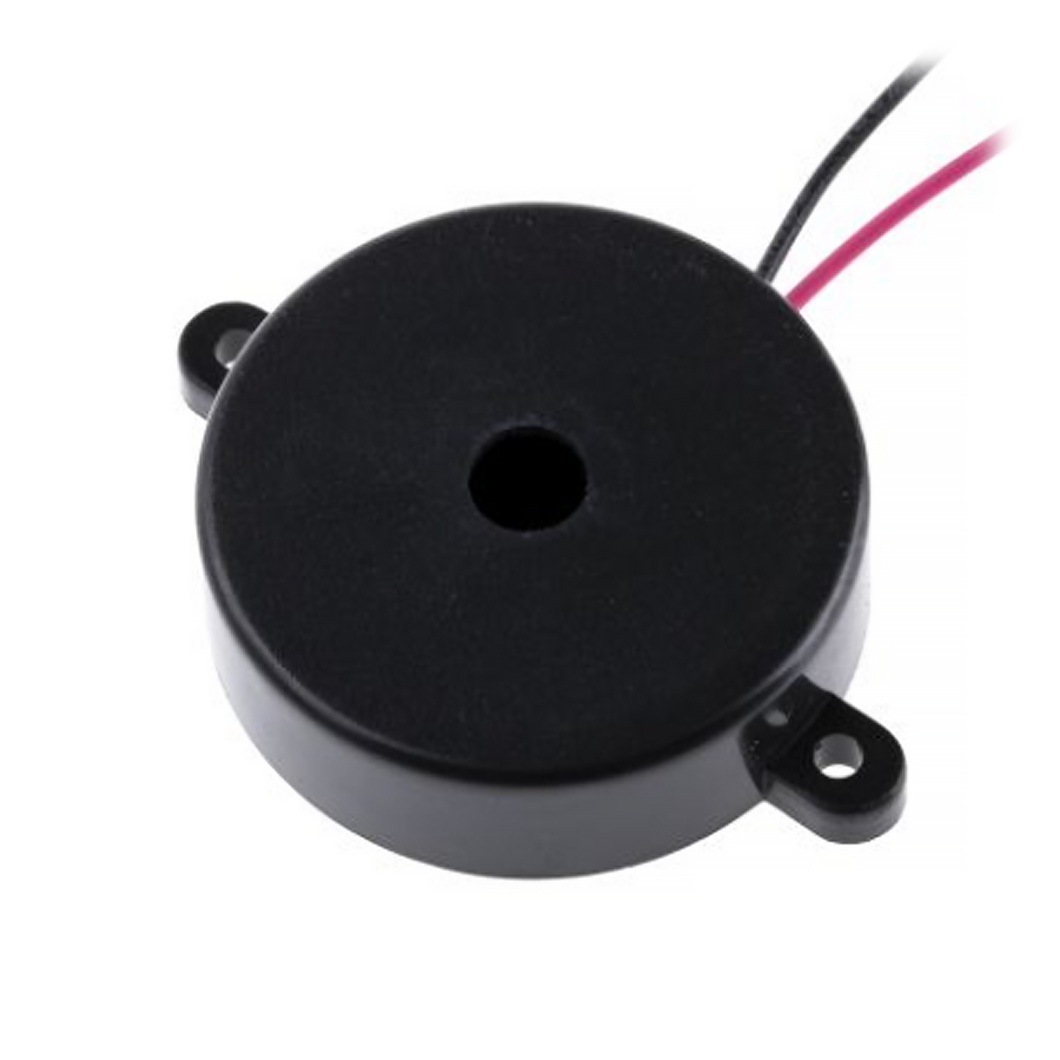

This 2-wire, 1,500-3,000Hz piezo element is ideal when design requires low-profile devices and big sound.
- Operates at voltages up to 30V.
- Delivers 86 dB sound at frequencies up to 2500Hz.
- Suitable for applications that require high sound output.
| Specifications | |
| Rated Voltage | 30Vpp Max. |
| Resonant Frequency | 2500 ±500Hz |
| Capacitance | 30nF ±30% @ 1V, 1kHz |
| Current Consumption | 9mA Max. @ 10V, 2.5kHz |
| Sound Pressure Level | 86dB Min. @ 10V, 10cm, 2.5kHz |
| Dimensions | 9.5 × 40mm (30mm Wide w/o Mounting Ears) |
| Drive Type | External |
| Mounting Type | Panel-Mount |
| Tone Type | Square Wave |
| Operating Temperature | -30° to 70°C (-22° to 185°F) |
| Country of Origin | Taiwan |
Technical Data Sheet
