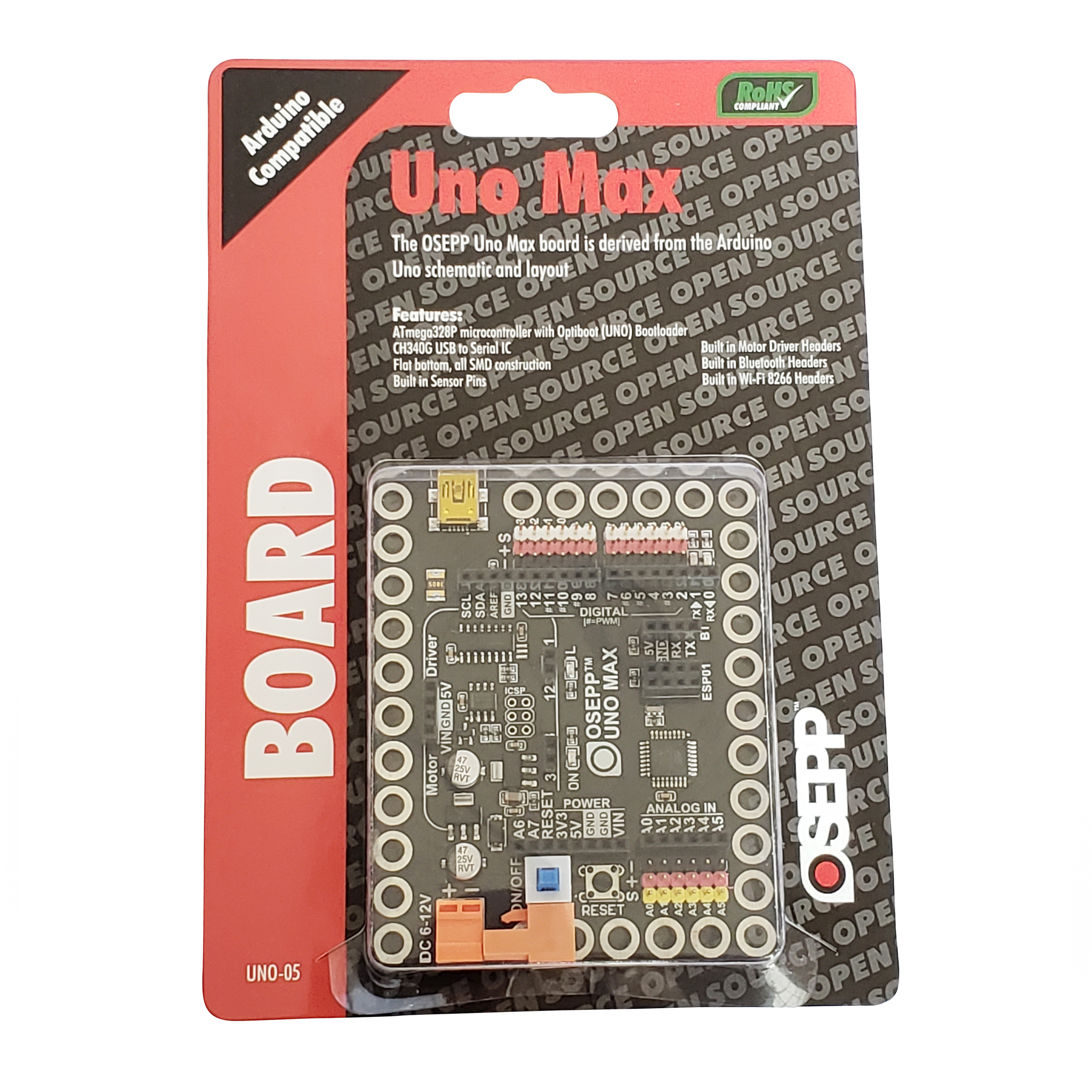

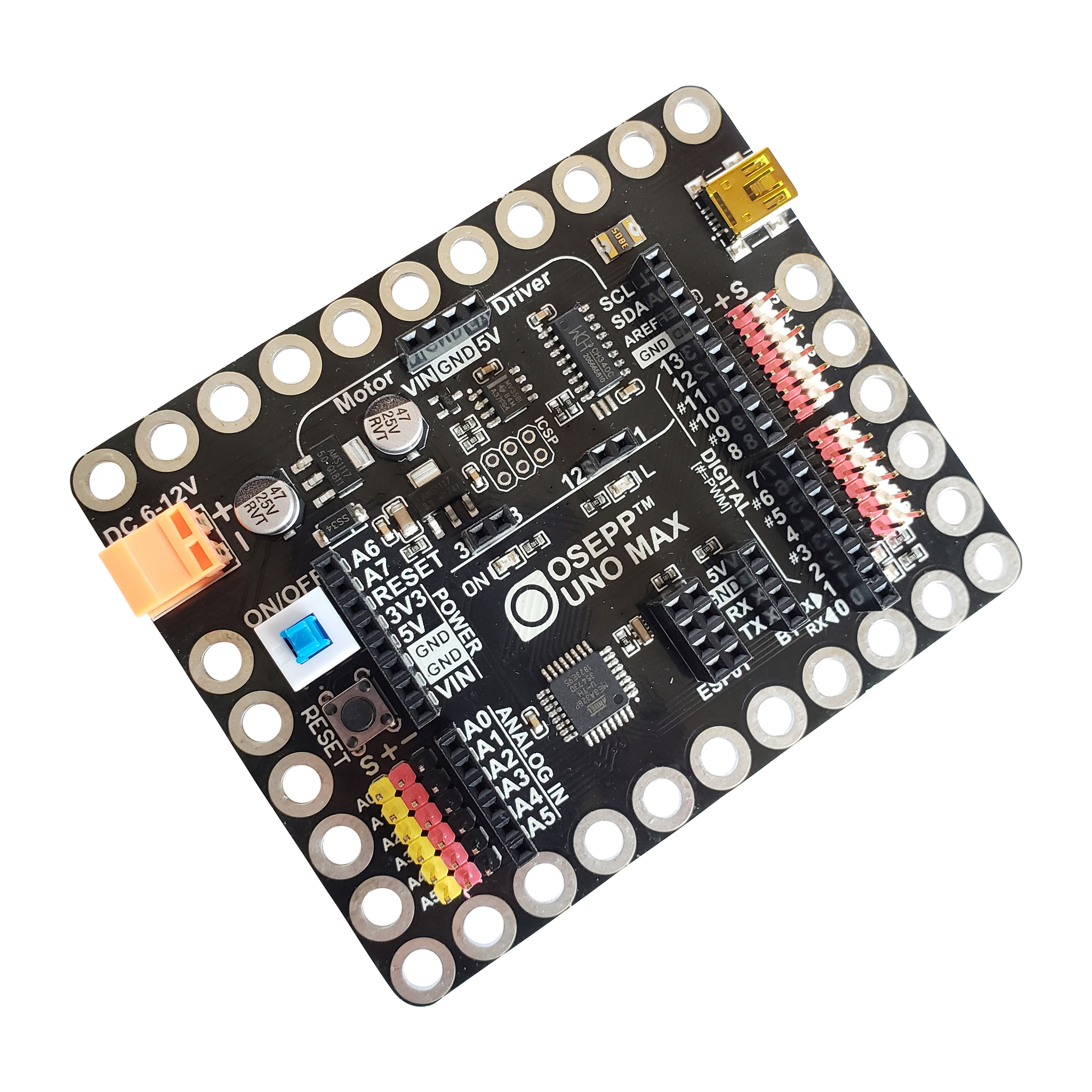

This is the ultimate UNO for Arduino enthusiasts! OSEPP has applied every lesson learned from existing models and created the UNO Max.
The USB to serial is now done with the ubiquitouss CH340G requiring fewer driver installs. It now has built-in sensor pins, motor driver headers, bluetooth headers and Wi-Fi 8266 headers making it even easier to build projects!
- ATmega328P microcontroller with Optiboot (UNO) boot loader.
- CH340G USB to serial IC.
- Flat bottom, all SMD construction.
- Built-in sensor pin and motor driver headers.
- Built-in Bluetooth headers and Wi-Fi 8266 headers.
| Specifications | |
| Catalog No. | 2760473 |
| Mfg. Part No. | UNO-05 |
| UPC | 675100024760 |
Technical Schematic (PDF)
ATmega328Pechnical Data Sheet (PDF)
⚠️ WARNING: CHOKING HAZARD: Small parts. Not for children under 3 yrs.
